In the field of food quality and safety, meat adulteration has long been a persistent challenge for regulators and consumers. Examples include pork mixed into beef balls and duck meat passed off as lamb. Traditional nucleic acid detection requires two separate steps—amplification and cleavage— which is not only time-consuming (often exceeding 90 minutes) but also prone to aerosol contamination during sample transfer, leading to false positives.
Recently, a study published in Sensors & Actuators: B. Chemical proposed a single-tube nucleic acid detection system that directly combines the two-step reaction into one. It achieves ultra-high sensitivity of 6 copies/reaction, delivers results in 60 minutes, and enables visual readout via smartphones. Today, we’ll break down this "fast and accurate" detection technology.
I. Pain Points of Traditional Detection:Two-step methods stuck in the "efficiency vs. contamination" dilemma
While CRISPR/Cas technologies have emerged as powerful tools for nucleic acid detection (e.g., Cas12a can specifically cleave target DNA and activate collateral cleavage activity), traditional protocols remain constrained by a two-step process:
First, amplify target nucleic acids via PCR/RPA/ERA or similar techniques;
Then transfer the amplified products to a Cas12a reaction system for detection.
This workflow not only prolongs detection time but, more critically, risks aerosol contamination from amplified products during transfer—leading to false positives. Additionally, it relies on laboratory equipment, failing to meet the needs of "point-of-care testing (POCT)" scenarios like slaughterhouses or markets.
The core breakthrough of the study: Integrating "Enzymatic Recombinase Amplification (ERA)" and "Cas12a cleavage" into a single reaction tube. The key lies in optimizing reagent ratios to balance their reaction kinetics—preventing Cas12a from prematurely cleaving primers (which would hinder amplification efficiency) while avoiding delayed detection initiation (which would extend time-to-result).
II. Scientific Optimization:DSD strategy "pinpoints" optimal parameters
To enable coexistence of two "mutually exclusive" reactions in one tube, the optimal concentrations of key reagents needed to be identified. Instead of the traditional "one-factor-at-a-time" method (low efficiency, prone to missing interactions), the authors employed a Three-Level Deterministic Screening Design (DSD)—simultaneously optimizing 6 core factors (primer concentration, Cas/crRNA concentration, KCl concentration, Tris-HCl concentration, pH, and Mg²+ concentration) to efficiently locate optimal conditions.

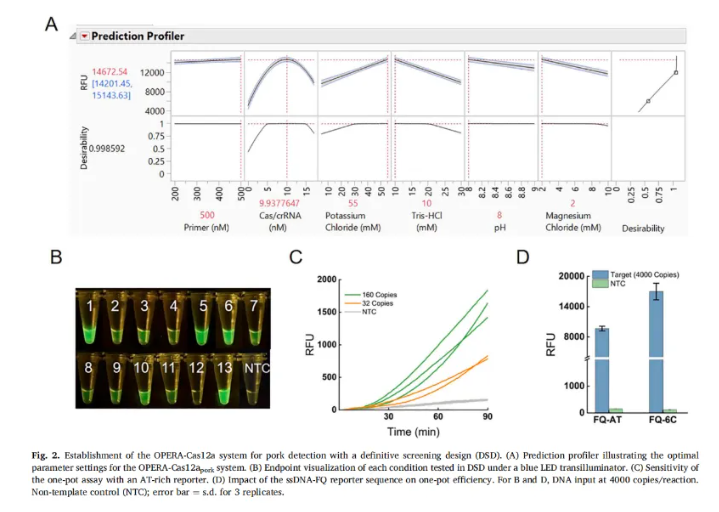

As clearly shown in the "predicted contour plot" (Fig. 2A):
Primer concentration: 500 nM (higher concentrations enhance ERA amplification efficiency);
Cas/crRNA concentration: 10 nM (too low reduces collateral activity; too high causes premature primer cleavage);
Mg²+ concentration: 2 mM (Cas12a requires Mg²+ for activation, but excess inhibits ERA);
pH: 8.0 (neutral-to-alkaline environment best suits both activities).
The optimized results are (Fig. 2B): Under blue LED light, positive samples (containing pork DNA) show distinct brightness, while no signal is observed in negative controls (NTC)—demonstrating excellent specificity. Moreover, no complex equipment is needed; results are readable via smartphone imaging.
III. Deep Dive into Key Factors:3 Components That Determine Detection Success

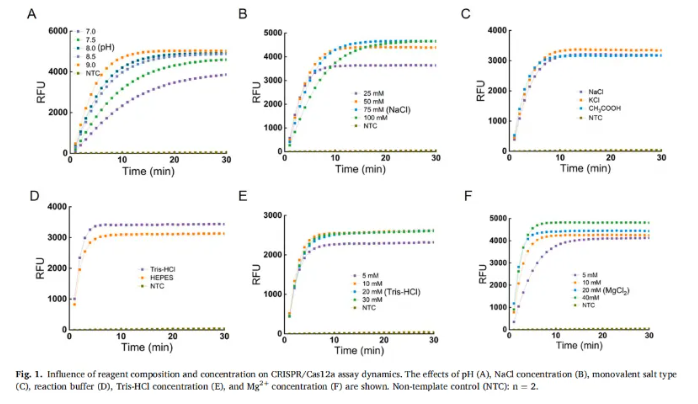

Before DSD optimization, the authors first identified the 3 core factors with the greatest impact on the reaction through "variable screening experiments" (Fig. 1), narrowing the scope for subsequent optimization:
The strongest fluorescent signal is achieved at pH 8.0. Acidic conditions (<7.5) or overly alkaline conditions (>9.0) directly inhibit the nuclease activity of Cas12a.
Cas12a activity is Mg²+-dependent, but concentrations exceeding 2 mM suppress the DNA polymerase activity of ERA, leading to reduced amplification efficiency.
55 mM KCl is selected as it promotes primer binding in ERA without interfering with the collateral cleavage activity of Cas12a. Other monovalent salts (e.g., NaCl) yield inferior results.
Other factors (such as Tris-HCl concentration and buffer type) have minimal impact on the reaction. They can be fixed at conventional values to further simplify the optimization process.
IV. Practical Performance:Detects 6 Copies and Catches 0.5% Adulteration
The optimized system demonstrates dual advantages of "high sensitivity + high specificity" in pork and duck meat detection:

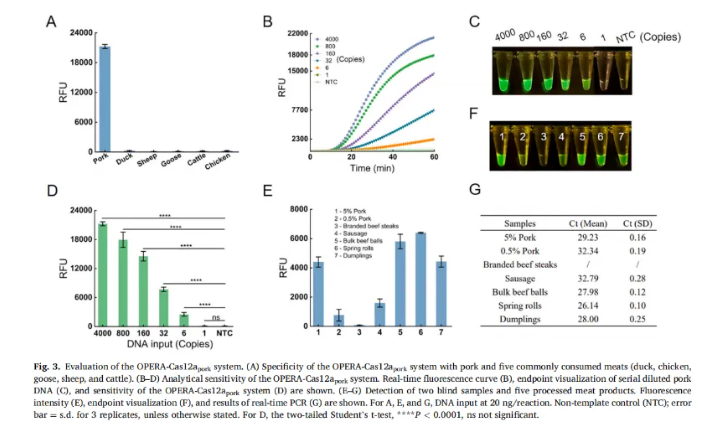

For pork detection (Figs. 3B-D): When pork DNA was diluted to 1~4000 copies/reaction, the system achieved a minimum limit of detection (LOD) of 6 copies (positive in all 9 replicates). This represents a 25-fold sensitivity improvement compared to the unoptimized version (160 copies). The same 6-copy LOD was achieved for duck meat detection (Figs. 5B-D), confirming strong system stability.
In pork detection (Fig. 3A), no cross-reactivity was observed with DNA from beef, mutton, chicken, duck, or goose. For duck meat detection (Fig. 5A), it did not confuse with other common meats, avoiding "misjudgment."
The authors verified practicality using "blind samples + commercial processed products" (Figs. 3E-G, 5E-G):
Fluorescent signals were detected in blind samples containing as little as 0.5% pork/duck DNA;
Among 5 commercial processed products (e.g., sausages, beef balls), 4 tested positive for pork and 2 for duck—results fully consistent with real-time PCR, proving direct applicability to practical detection scenarios.
V. Reagent "Game-Changer":Suzhou GenDx Simplifies Technology Commercialization
The high efficiency of this system is inseparable from the stable support of core reagents—especially the activity of Cas12a enzyme and its compatibility with the ERA system, which directly determine detection success. Suzhou GenDx’s CRISPR/Cas12a reagents perfectly match the system, solving the "reagent compatibility" challenge for technology commercialization:
Suzhou GenDx’s LbCas12a enzyme undergoes strict quality control. It maintains sustained collateral cleavage activity at 40℃ (the system’s optimal reaction temperature), avoiding "false negatives" caused by enzyme activity fluctuations. The coefficient of variation (CV) between batches is < 5%, ensuring strong experimental reproducibility.
The supporting reaction buffer comes with pre-optimized Mg²+ and KCl concentrations, directly compatible with the ERA amplification system. Researchers don’t need to spend weeks adjusting reagent ratios, enabling rapid construction of the detection system.
The reagents support lyophilized formulation, facilitating room-temperature transportation and storage. In on-site environments like slaughterhouses and markets, reactions can be initiated by simply rehydrating with water. Results are readable with an LED light and smartphone—no complex laboratory equipment required.
For food testing institutions, CDCs, or biotech enterprises, choosing Suzhou GenDx’s reagents eliminates the "reagent compatibility" hurdle. It directly translates technological advantages into practical detection capabilities—whether for meat adulteration screening, pathogenic bacteria, or virus detection, enabling "on-site rapid testing and accurate interpretation."
From meat adulteration to infectious disease screening, single-tube detection is breaking the barrier of "laboratory exclusivity." If you’re developing nucleic acid rapid testing solutions, try Suzhou GenDx’s reagents to make technology commercialization more efficient and stable～
Doi: 10.1016/j.snb.2024.135941
